* K₂T-Mini series products granted design patent protection.

The K₂T-Mini is a modular, automated, labscale desktop tangential flow ultrafiltration system. The system is compatible with boxed flat film package and hollow fiber membrane columns. It is suitable for processes such as concentration, dialysis (buffer exchange), purification and clarification of biologics such as vaccines, monoclonal antibodies and recombinant proteins, as well as MF and SPTFF modes. The system can be used flexibly in processes development, clinical trials and other laboratory environments, and also for cGMP production.

Name

Model

K₂T-Mini

Mini / Desktop

Area of support membrane

Circulation tank

Power unit

Feed flow rate

Working pressure

Process temperature range

Minimum circulation volume

Retention volumes

Pipeline interface

Material

Optional Upgrade

50c㎡-0.1㎡

Transparent plastic, volume 1L

Peristaltic pump：0-600rpm, 0-33.6LPH
Quattroflow：0-3000rpm,0-60LPH

0-560mL/min, 0-1L/min

0-4bar

0-50℃

36ml

14ml

16#(Luer-Lock)

AISI 316L / PEEK / PTFE / EPDM / PP / PC / PSU

Filter outlet flow meter, concentration / filter outlet conductivity, concentration / filter outlet pH monitoring, UV, etc.

K₂T-Lab is a classic laboratory small-scale manual tangential flow ultrafiltration system. The system is simple and easy to operate, with optimized piping design and reusable membrane packages for high recovery rate and cost-effectiveness. One to three membrane packages can be used on parallel at the same time to expand the membrane area, which is suitable for biological separation, material concentration, protein purification and other research work. The system is capable of MF and UF to meet the lab filtration needs of laboratories and facilitate process scale-up.

Name

Model

K₂T-Lab

Lab small-scale / Desktop

Area of support membrane

Circulation tank

Power unit

Feed flow rate

Working pressure

Process temperature range

Minimum circulation volume

Retention volumes

Pipeline interface

Material

Optional Upgrade

0.1㎡-0.3㎡

AISI 316L, volume 2L

LONGER original peristaltic pump; control: start-stop control, directional control, speed control (0-5V, 0-10V, 0-10KHZ optional); seamless exchange of quattroflow

0-2L/min

0-4bar

0-65℃

60ml

20ml

1/2”(TC)

AISI 316L / PTFE / EPDM

Quattroflow(Replacement peristaltic pumps)

K₂T-Lab Pro is an easy-to-use and versatile desktop automated ultrafiltration system ideal for use in laboratory environments, process development and GMP manufacturing. The system is compatible with hollow fiber membrane and packages, and provides user defined endpoint control. The system is suitable for purification, clarification, concentration, buffer replacement and other downstream processes of biologics. The system is designed to be semi-automatic , with automatic TMP control for automatic concentration, automatic filter wash collection, and automatic data recording.

Name

Model

K₂T-Lab Pro

Auto Series / Desktop

Area of support membrane

Circulation tank

Power unit

Feed flow rate

Working pressure

Process temperature range

Minimum circulation volume

Retention volumes

Pipeline interface

Material

Optional Upgrade

0.1㎡-0.5㎡

AISI 316L, volume 10L,0-1000rpm

Peristaltic pump: 0-600rpm, 0-186LPH
Quattroflow: 0-3000rpm,0-180LPH

0-3L/min

0-6bar

0-65℃

120ml

29ml

1/2”(TC)

AISI 316L / PTFE / EPDM

Feed pumps, tank Viewing Window, stirring systems, pressure sensors, flow meters, conductivity, pH monitoring, UV, etc.

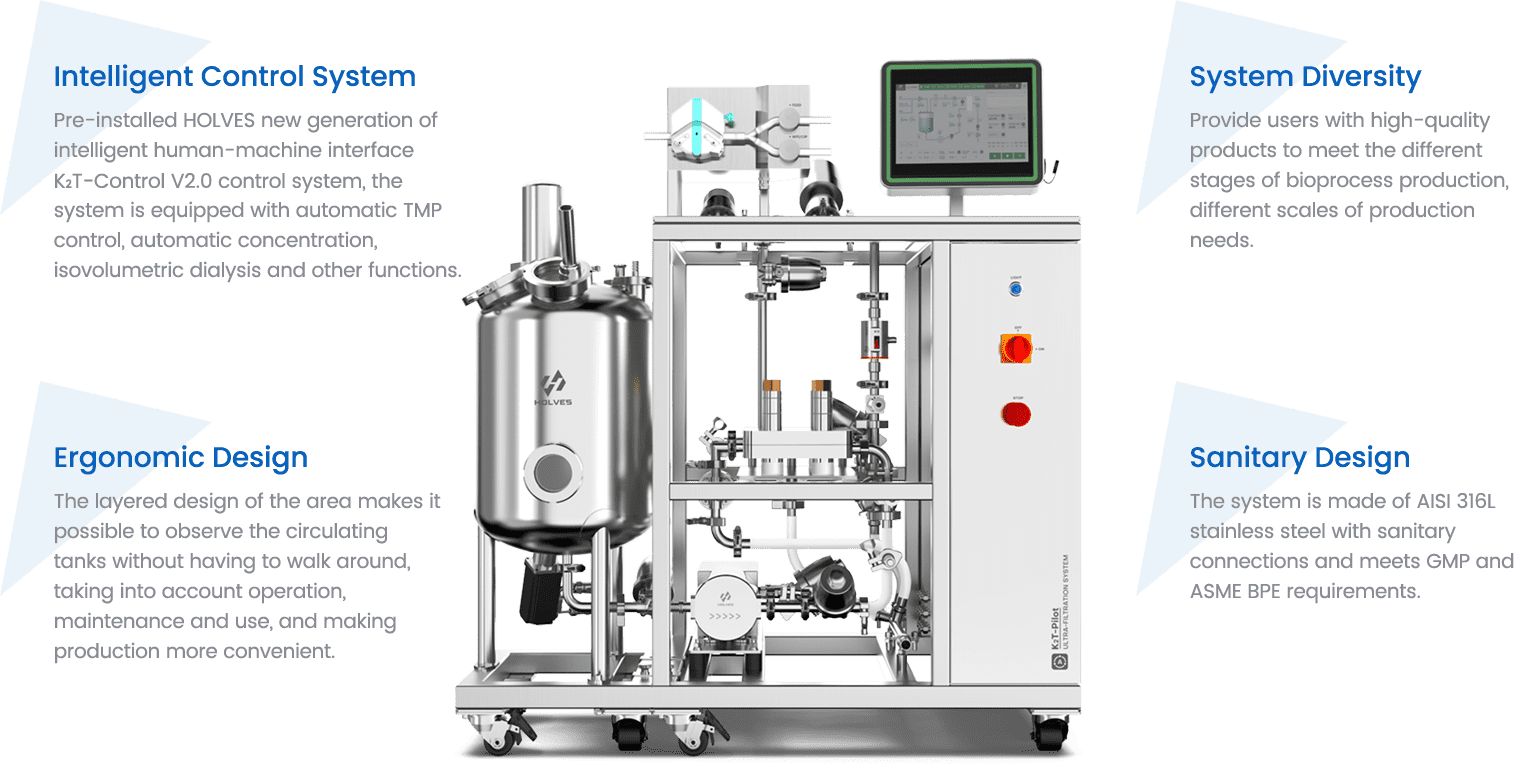

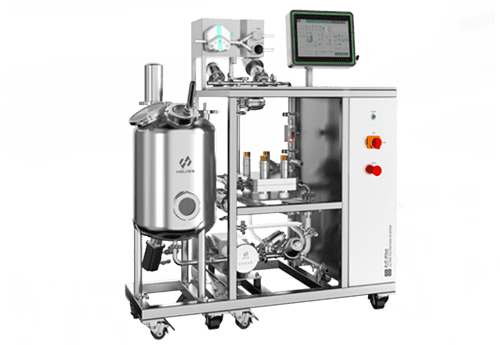

K₂T-Pilot is suitable for pilot experiments and small-scale production of biological products, and greatly improves the user experience by simplifying the operation interface. The design of the circulation tank and UF part of the system is separated, which not only optimizes the use of space, but also provides greater flexibility and convenience for the user. The system supports manual and automatic operation modes, and can realize various processing functions such as concentration, diafiltration (buffer exchange), purification, clarification, CIP cleaning and collection.

Name

Model

K₂T-Pilot

Pilot / Auto Series

Area of support membrane

Circulation tank

Power unit

Feed flow rate

Working pressure

Process temperature range

Minimum circulation volume

Retention volumes

Pipeline interface

Material

Optional Upgrade

0.5㎡-2.5㎡

AISI 316L, volume 20L,0-1000rpm

Peristaltic pump：0-300rpm, 0-1126LPH
Quattroflow：0-3000rpm,0-1200LPH

0-20L/min

0-6bar

0-65℃

2000ml

340ml

3/4”(TC)

AISI 316L / PTFE / EPDM

Feed pumps, double jacket, stirring systems, pressure sensors, flow meters, conductivity, pH monitoring, UV, etc.

K₂T-Product is a highly automated filtration device designed to meet the demands of industrial-scale production. The system is usually applied to the separation and purification, concentration, dialysis and other processes of biological macromolecules such as antibodies, vaccines, recombinant and blood products.

Name

Model

K₂T-Product

Product / Auto Series

Area of support membrane

Circulation tank

Power unit

Working pressure

Process temperature range

Pipeline interface

Material

Optional Upgrade

0.5-5㎡,5-20㎡,20-40㎡,30-60㎡,40-80㎡

Customized

Quattroflow, sanitary rotor pumps

0-6bar

0-65℃

Customized

AISI 316L / PTFE / EPDM

Feed pumps, double jacket, stirring systems, pressure sensors, flow meters, conductivity, pH monitoring, UV, etc.
